9M 10M 12M Hot Dip Galvanized Concrete Electric Pole 33KV Steel Tower Pole for Power Distribution Equipment
-
表面処理熱いディップ亜鉛めっき
-
材料Q345; GR50/GR65/S500MC
-
厚さカスタマイズ
-
パウダーコーティング白、青、スライバー、灰色など
-
形丸いまたは多角形
-
起源の場所中国
-
ブランド名FUTAO
-
証明ISO 9001
-
モデル番号FT-DL-716
-
最小注文数量5pieces
-
価格$210 - $230/ Piece
-
パッケージの詳細40hcまたはot、マットまたはストローマットでラップ
-
受渡し時間60営業日
-
支払条件L/C、T/T
-
供給の能力毎月10000個
9M 10M 12M Hot Dip Galvanized Concrete Electric Pole 33KV Steel Tower Pole for Power Distribution Equipment

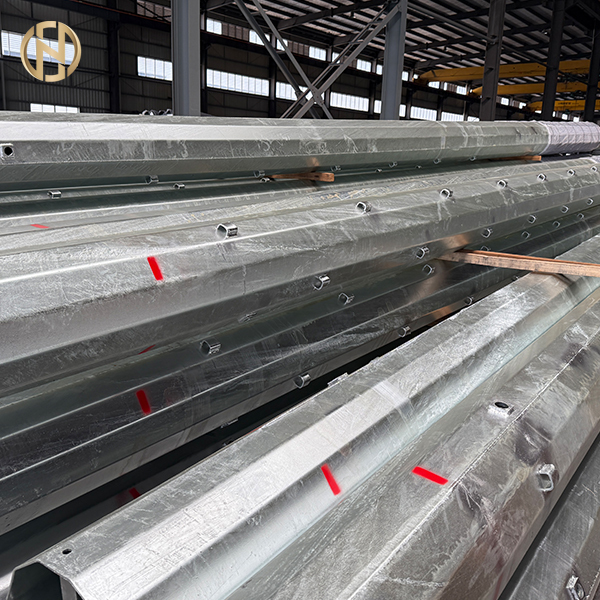

Hot-dip Galvanized High Voltage Power Electric Transmission Line Pole
Product Description
The products above are steel utility poles made specifically for steel pole 300daN ,200daN ,Metal power pole ,
- Products are designed and manufactured according to ANSI/TIA-222-G structural standards
- Only our company can comply to these global manufacturing standards which gives us an edge over our competitors
- Products are hot dip galvanized according to ISO 1461 Stardand.
- Pole shaft material : Q355
- Material code : ASTM 572 GR50
- We possess the ISO 9001:2015 certification and are committed to giving our customers the best products and service
- We provide additional assistance if required including supervision and supplementary components
- We accommodate various designs according to our customers’ specifications
To design in accordance with PLS software, we will require the following design parameters:
Product Specifications
|
Product Name |
steel pole 300daN ,200daN ,Metail power pole , Desco Bangladesh market |
|---|---|
|
Suitable Uses |
11kv Power Distribution |
|
Shape |
Octagonal. |
|
Material
|
Q355B/ A572 gr50, Minimum yield strength >= 355n/mm2 Q235B/A36, Minimum yield strength >= 235n/mm2 Other materials may be used as per request (Q460, ASTM573 GR65, GR50, SS400, SS490, to ST52) |
|
Tolerance of Dimensions |
+- 1% |
|
Power |
10 -15KV |
|
Safety Factor |
Safety factor for conducting wire: 2.1 Safety factor for grounding wire: 2.1 |
|
Design Load in Kg |
300 - 1000 Kg applied to 50cm from pole top |
|
Engraving |
Name plate through rivet or glue, engraving, embossment as per customers' requirement |
|
Surface Treatment |
Hot Dip Galvanization according to ASTM A123 standards/Powder Coating |
|
Joint of Poles |
Insert Mode, Inner Flange Mode, Face to Face Joint Mode |
|
Design of Poles |
Against earthquake of 8 grade |
|
Wind Resistance |
120 km/h or 32m/s |
|
Minimum Yield Strength |
355 mpa |
|
Min to Max Ultimate Tensile Strength |
490 mpa - 620 mpa |
|
Standard |
ISO 9001 |
|
Length per Section |
2 Section /1 section |
|
Welding |
Internal and external double welding process produces a seamless surface Welding Standard: AWS (American Welding Society) D 1.1 |
|
Thickness |
2-3mm |
Packaging & Shipping

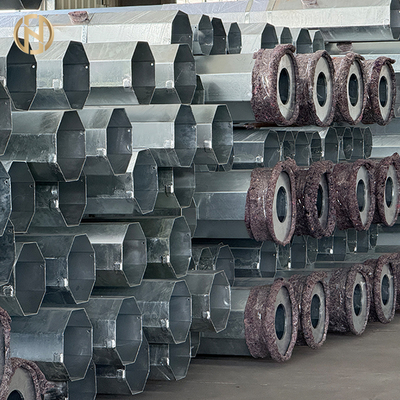

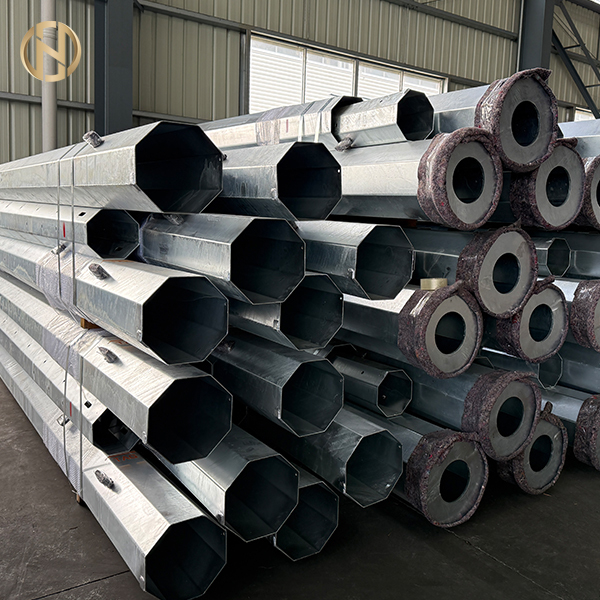

We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
Process of Production
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

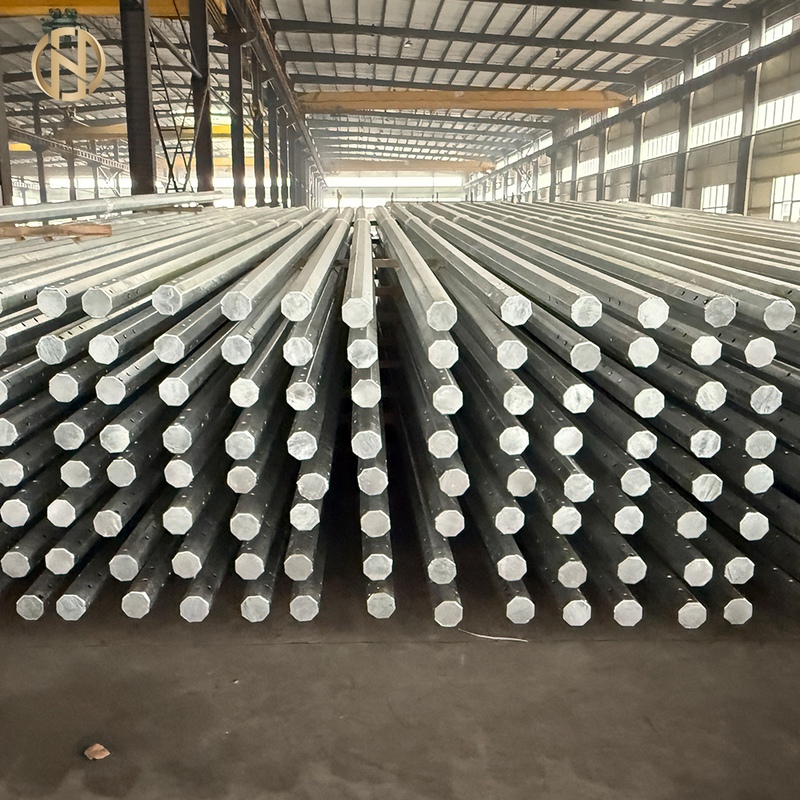

Welcome to our factory!
